Wednesday, October 21, 2009
I found the 70-235 exam to be focused on usage of tooling and terms, and a really nice exam that is based on experience.
The 70-241 exam was focused on more 'advanced' knowledge on exception handling, orchestration design, pipeline processing etc, also a nice exam (except for the 20 questions i had to fill in before i could actually take it). Completing the exam i was nervous and reviewed all the questions that i had marked for review 3 times. When i decided that is was time for the verdict i clicked 'End exam'. Each time i do this on a exam my internal timer starts ticking; 1...did i pass?, 2....oh no i forgot that!....3....come on! 4..what's the verdict....it was a 972, that made my day!
Happy studying for everybody that is taking the exam.
Monday, October 12, 2009
Dynamics AX 2009 exposes documents using an application platform called AIF. AIF enables the integration of Microsoft Dynamics AX through Web services, Microsoft Message Queuing (MSMQ), the file system (using a directory), or BizTalk Server.
The AIF framework uses documents wrapped in envelopes for processing. A downside to not using the BizTalk adapter is that the envelope processing has to be performed additionally while the BizTalk adapter will solve this for you. A colleague of mine has an article on how to do AIF processing without the AIF adapter (see: http://www.microtalk.net/2009/04/23/AssignAHeaderValueInAnAIFDynamicsAXMessageWithBizTalk.aspx), this article will show you how to integrate with AIF using the BizTalk AIF Adapter.
- Installed version of Dynamics AX 2009
(All available service packs / fix packs must be installed, this is not easy to forget since the installation wizard forces you to install all service / fix packs before you can continue)
- BizTalk environment
- BizTalk AIF Adapter installed in the BizTalk environment
(This can be found on the installation disc of Dynamics AX 2009)
- Active directory account with access to Dynamics AX 2009
(Used for authorization)
- Active directory account (used for the proxy)
- GOTCHA: Run the host instance under the active directory user with access to Dynamics AX 2009
Developing the BizTalk solutionPerform the following steps to develop a BizTalk solution using the BizTalk AIF Adapter;
1) Create a reference to the Dynamics AX DLL (used for the AX Documents)
C:\Program Files\Microsoft Dynamics AX\50\Client\Bin\Microsoft.Dynamics.BizTalk.Adapter.Schemas.dll
2) Walk through the ‘Add Generated Items wizard’ and select the process you want to implement
- Right click the BizTalk project, add new item, add generated items
- Select Adapter: Microsoft Dynamics AX 2009
Enter values for the following fields:
Set Server name =
Set TCP/IP Port =
- Select the process that you want to implement
TIP: You can communicate Synchronous or A-Synchronous with the obvious pros and cons. I found however that for the initial setup when you are finding your way, synchronous is much more helpful when debugging the initial setup.
3) Configure Dynamics AX 2009 (it might post this in detail in a second blog post)
To be able to communicate with Dynamics AX 2009, the configuration of Dynamics has to be set up correctly. Since this is the non BizTalk point, this might not be of interest. The following steps must be performed and be found in a Microsoft whitepaper ‘Application Integration Framework(AIF) BizTalk adapter configuration for data exchange’;
- Configure transport adapters (activate the dynamics side for send/receive)
- Configure channels (configure one-way / bi-directional channels)
- Configure services (configure what functionality to expose, used in the add generated items wizard)
- Configure endpoint (this is used to configure how to expose the services, set authorization etc, e.g. a unique endpoint ID per service is configured so that the BizTalk orchestration can address this endpoint easily )
4) Set the context properties
When the orchestration is developed, some context properties must be set to be able to send/receive messages using the BizTalk AIF adapter as shown below;
PORequest = POCanonical;
PORequest(*) = POCanonical(*);
PORequest(DynamicsAx5.DestinationEndpoint) = "OrderEndpoint";
PORequest(DynamicsAx5.SourceEndpoint) = " OrderEndpoint ";
PORequest(DynamicsAx5.SourceEndpointUser) = @"activedirectory\axuser"; //a valid active directory user with access to dynamics
PORequest(DynamicsAx5.MessageId) = POCanonical(BTS.MessageID); //unique message id
"http://schemas.microsoft.com/dynamics/2008/01/services/PurchaseOrderService/create"; //action to identify the service that is required

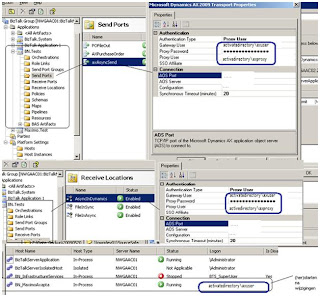

5) Configure the port and specify the users
The final step is to configure the ports;
- Active directory proxy account (port configuration) à used to authenticate to the AIF framework
- Use an active directory account with access to Dynamics AX 2009 à used to authorize
Configure the host instance with an user that is allowed to use Dynamics AX 2009.
This should do the trick!
